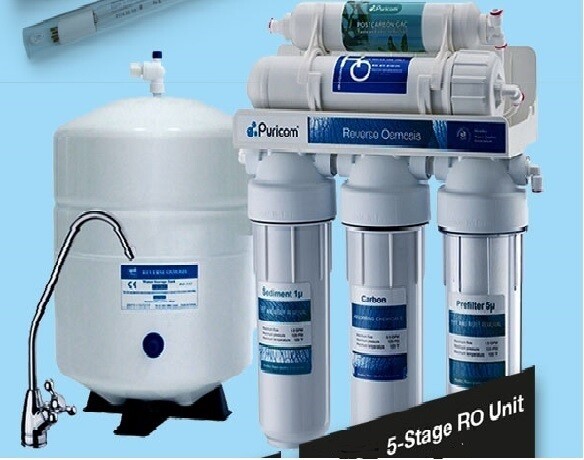

“GLACIER ” 5 STAGE REVERSE OSMOSIS SYSTEM SPECIFICATIONS

How Reverse Osmosis Works?

The R.O. process uses a semipermeable membrane that has tiny holes which are 1000 of a micron small. This membrane has the ability to remove and reject a wide spectrum of impurities and contaminants from your water using only water pressure. These contaminants are automatically flushed down the drain. Only the purified water which has passed through the membrane gets collected and stored in an air tight sterilized water tank.

How, safe is water direct from the tap?

Water doesn’t have to taste or smell bad to contain harmful toxic chemicals. Water treatment facilities are geared solely for the prevention of waterborne diseases. In addition chemicals added to water by these treatment plants can react with organic matter present to form toxic, carcinogenic organic compounds known as Trihalomethane (THM`s). A recent environmental protection agency survey identified over 700 potential hazardous chemicals in the U.S water supplies.

FEATURES:

• Quick fitting design ensures easy installation and maintenance
• Dual installation, can be wall mounted or placed under the sink.
• Low noise high pressure booster pump included.
• Six stage filtration system ensures continues flow of purified water.
• Auto-shut off when water tank is full or empty.

SPECIFICATIONS:

• Minimum operating water pressure require: 4.0 bar.
• High Pressure Booster Pump
• Ambient temperature: 4 - 5 degree centigrade.
• Power supply for pump operation, 220V - DC24V.
• Capacity : 75 GPD (gallons per day) or 225Liters per 24hr cycle.
• Storage Tank - 12 liter storage tank. (3.2 gallons)
• Dimensions: (cm) 60 (L) x 44 (H) x 32 (W) - R.O.system.
• First level of filtration: 10" inch Pre-sediment 10 micron compressed fiber filter. (This filter is designed for filtering of Sand, Silt, Dirt and Rust Particles) Replace once a year.
• Second level of filtration: 10" inch Block Carbon Filter - (This filter is highly effective for filtration of water for certain Chemicals - Chlorine, taste and oder, and Sediment reduction down to 5 micron) - Replace once (1) a year.
• Third level of filtration: 10" inch Activated Coconut Shell Carbon Filter. - (This filter for effective removal of Chlorine, foul taste and oder) Replace once (1) a year.
• Fourth level of filtration: Filmtec Reverse Osmosis Membrane. - (Remove and reject a wide spectrum of impurities) Replace once every two (2) years.
• Fifth level of filtration: In-line Post granular activated carbon filter. - (Last level of removal of taste and oder) Replace once (1) year.
• 100% tested and sterilized ready for installation.
• Storage Water Tank.
